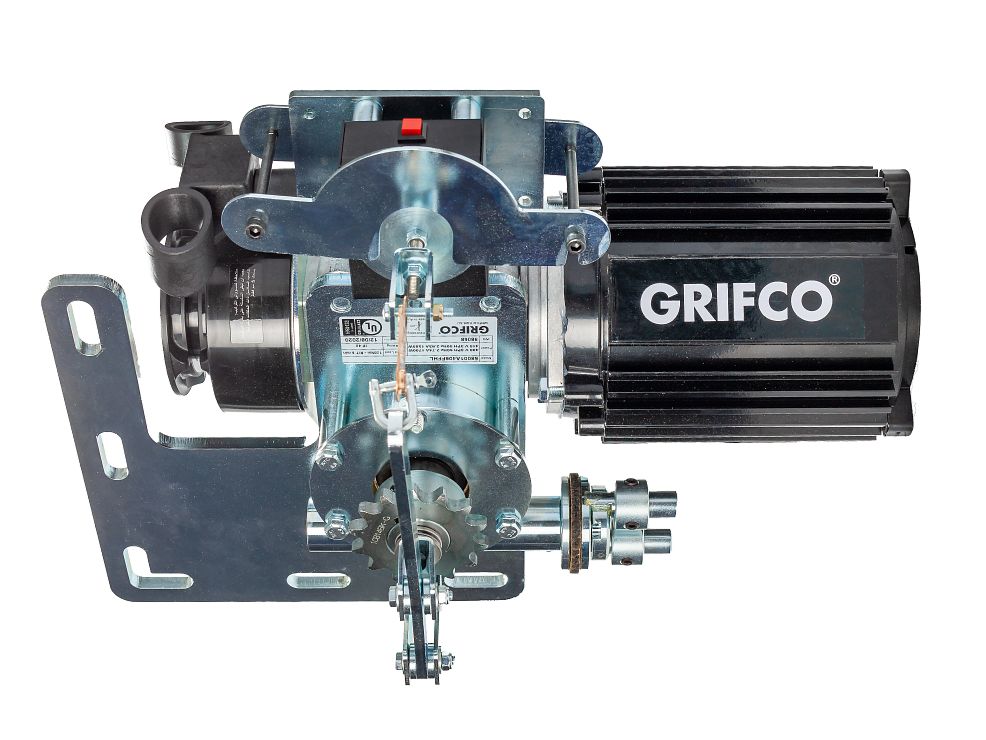

Industrial and Commercial Door Openers

Quality Manufacturing

• Australian made and designed with expert engineering and manufacturing.
• IEC 60335-2-103 compliant meets SASO requirements.

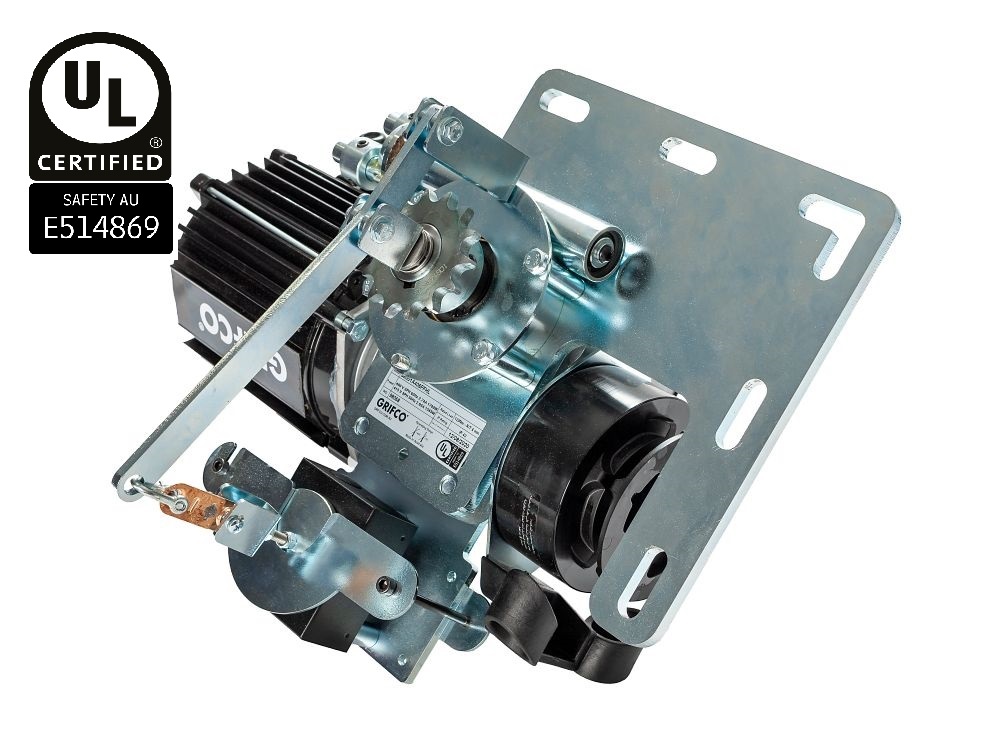

• UL certified tested to: AS/NZS 60335.2.103:2016, AS/NZS 60335.1:2011.

Powerful and Reliable

• Voltage to suit middle east requirements.
• Mechanical controlled-descent mechanism with fusible link and holding magnet.
• Powerful 1.0hp & 1.5hp motor with purpose designed gearbox for durable, reliable operation automatic chain-engage mechanism for safe and easy manual operation in the absence of power
• IP40 ingress protection complies with IEC60529.

Safe Descent

• Descent mechanism will slowly and safely lower the door upon command from fire control panel via the onboard holding magnet.
• Fusible link provides a failsafe method of descent activation.
• Simple to set and adjust descent mechanism for easy setup and maintenance.
• Broad range of accessories for remote, secure operation and safety devices.

• 240V 1PH/50Hz, or 220-230V 1PH/60Hz (1HP)
• 415V 3PH/50Hz, or 380-400V 3PH/60Hz (avaiable in 1HP & 1.5HP)
• IP40

Door Specs

Suitable for Spring balanced steel shutters up to 36m² based on a “Standard Roller Shutter” (refer below):

• The Shutter is correctly spring balanced
• The Shutter has max 1.0mm x min 100mm slats, with a Diameter 150mm drum for shutters max 36m²
• The Shutter has no wind-locks
• A sprocket ratio ≥ 4:1 is used

2 Years

Reversing Starter Control
